Hitachi ZX350LC-6

Overview

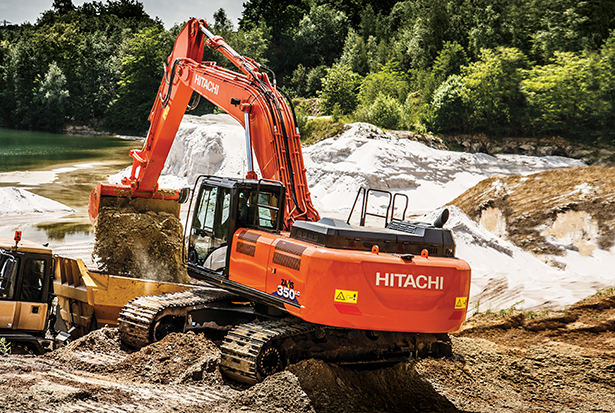

The ZX350LC-6 has been engineered to operate efficiently on a variety of challenging job sites thanks to its durable features and reliable components. It is ideal for earth moving, general construction and quarrying and mining applications and will deliver optimum levels of availability and performance. Incorporating TRIAS II technology developed by Hitachi, hydraulic oil returned to the tank is reduced due to the cooperative control of the pump and valve. Resulting in lower fuel consumption and zero loss in productivity.

The air-conditioned ISO-standard ROPS-compliant centre pillar reinforced structure cab (CRES V) provides additional legroom and rigidity to the machine, enhancing safety for the operator. While the ergonomically designed layout reduces operator fatigue and offers high levels of comfort, including a heated fully adjustable air suspension seat. A multifunctional LCD monitor with large 7inch screen allows selection of ECO and PWR modes to control motion speed.

Hitachi ZX350LC-6 Specification

Weight	35500kg
Length	11220mm
Width	3290mm
Height	3150mm
Max Digging Depth	7380mm
Max Digging Reach	11100mm
Max Cutting Height	10360mm
Tall Overhang	1115mm
Bucket Size (inches)	72 & Ditch
Bucket Size (mm)	TBA
