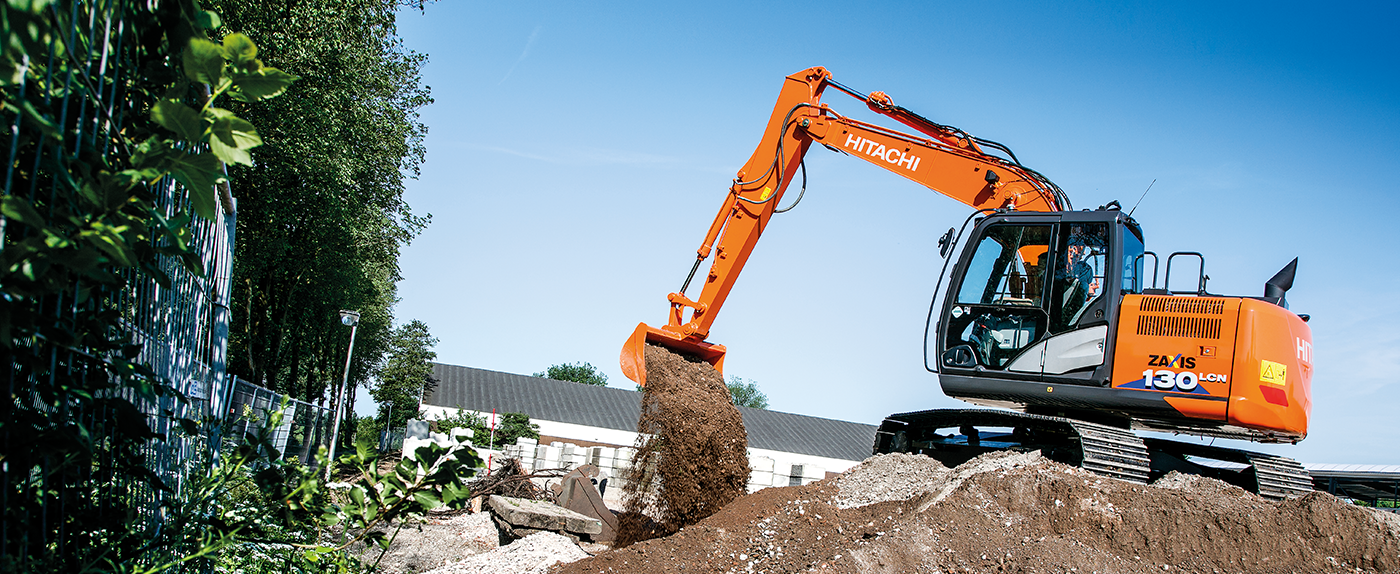

Hitachi ZX130LCN-6

Overview

Although the smallest model in our medium excavator fleet, the Hitachi ZX130LCN-6 has been developed using the same high quality components and materials as the larger Hitachi models and is engineered to give maximum availability and reliability. The HIOS IV hydraulic system ensures the ZX130LCN-6 provides a smooth, fast and precise performance wherever it operates.

The air-conditioned ISO-standard ROPS-compliant centre pillar reinforced structure cab (CRES V) provides additional legroom and rigidity to the machine, enhancing safety for the operator. While the ergonomically designed layout reduces operator fatigue and offers high levels of comfort, including a heated fully adjustable air suspension seat. A multifunctional LCD monitor with large 7inch screen allows selection of ECO and PWR modes to control motion speed.

Hitachi ZX130LCN-6 Specification

Weight	14200kg
Length	7710mm
Width	2690mm
Height	2870mm
Max Digging Depth	6030mm
Max Digging Reach	8770mm
Max Cutting Height	8930mm
Tall Overhang	315mm
Bucket Size (inches)	18, 24, 30, 36, 48 & Ditch
Bucket Size (mm)	450, 600, 750, 900, 1050 & Ditch
